Intelligent Nurse Call System for Seamless Care Coordination
Intelligent Nurse Call System for Seamless Care Coordination Solution of Intelligent Healthcare Communication System consists of IP communication host based on IP networking, combined with two-wire signalling and power technologies to provide a responsive and cost-effective solution.
The system supports two-way voice intercom, digital message display, audible and visual alarm indications with optional connection to HIS to exchange patient information, room information and retrieve of medical charges. The system is best fit to nursing home, medical centre, diagnostic centre, confinement Centre, elderly home care, clinics etc.
Main Features
- Patented technology to transmit data communication over power lines. Only two-wires system is required. The economic wiring system integrates the power line, data signal line and audio signal together thus enable high quality and reliable data transmission over an affordable wiring platform.
- Patient information listing at nurse station with prominent interface and easily retrievable inpatient call statistics.
- Staff assist function: Press “staff assist” button to call for other staff asistance.
- Support substation units call-in and display at anytime.
- Adjustable volume for both host and substation unit.
- Editable bed number online: Numbering of the bedsides substations and corridor lights can be edited and changed anytime.
- Offline operation: the system call, communication and alarm function continue to operate in the event of workstation or network failure.
- Self dianogstic: Self dianogstic and faults screening and patrolling, includes host short circuit alarm, voltage and current testing, scheduled sub-stations inspection, system logging, abnormality analysis and recording, etc
- Staff registration station (door side sub-station) can be programmed to enable nurse prescence, generate emergency call and reset the call.
- Call reminder: In the event care givers did not answer a particular call in time, the message will be keep and the system willl continuously remind care givers in line with calls queue.
- Voice speech: voice broadcasting ward name and bed number. support alarm volume setting by different time segments.
- Prioritise nursing care: system supports different nursing care level definition and prioritise the most critical and urgent case.
- Optional corridor message display to improve visibility of important messages across the ward.
- Broadcast function: support health and emergency information broadcasting, operator broadcasting and background music for special caring unit.
IP Networking System Quality
Patented two wires power line data transmission technology
Warranty extendable to 2 years (Conditions apply)
Local Technical Support
Adopt the 4th generation power line digital signal transmission. Yarward R&D makes the communication
speed between system manager and bed/toilet stations lifted by 6 fold.
Compare with traditional TCP/IP data communication, Yarward patented communication system is
subjected to less interference and thus uplift communication stability. The critical message transmitted
would not be interrupted even during a network failure.

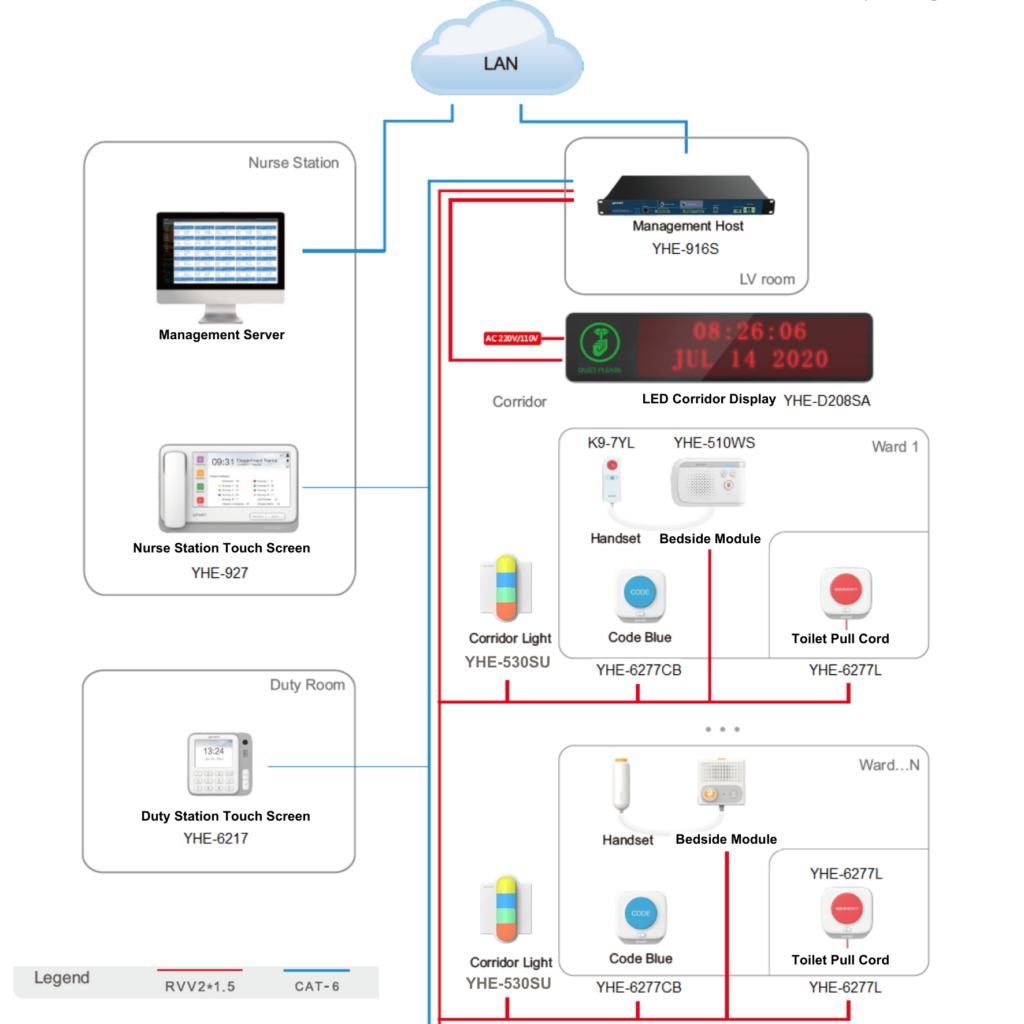

System Schematic Diagram
The system uses mainly two copper-core PVC insulated PVC sheathed soft wire (RVV, 1.5mm2 and 0.5mm2) to connect all components except nurse station YHE-927 and workstation (if there is any). The System manager YHE-916S at different wards can be linked together to form a central managed nurse call network.

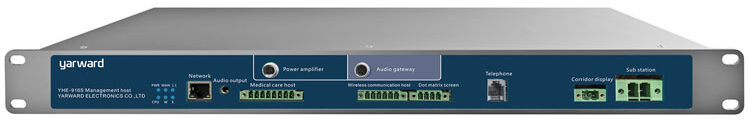

Communication Host
- Advance propriatary digital technoloy to integrate the power supply line, data signal line and voice in two cores wiring system. It makes the installation simpler while assuring system stablility.
- Manage data exchange of the entire system, allocate necessary resources to respective substations and devices.
- Supply regulated power to connected devices and check real-time current/voltage at regular interval
- To ensure the main functions of the system such as call, alarm and voice intercom function will continue to operate in the event of PC or network failure.
- Serve as a power amplifier to allow high quality and clear audible alarm, even in noisy environment.
- RJ45 networking port for information transmission through TCP/IP.
- Maximum communication range: 800m
- Maximum number of 927 connected: 20 nos
- Maximum number of devices connected: 200 nos
- Device dimension: L482mm x W250mm x H45mm
Lightweight software function
It can meet the needs of nursing level statistics, hospital
admission operation, patient information data enter, call
message display and even logs export
Connect with HIS system
Optional connection to HIS system to automatically update
patient information and generate electronic listing. Improve
nursing operation efficiency and help moving toward paperless
operation.
